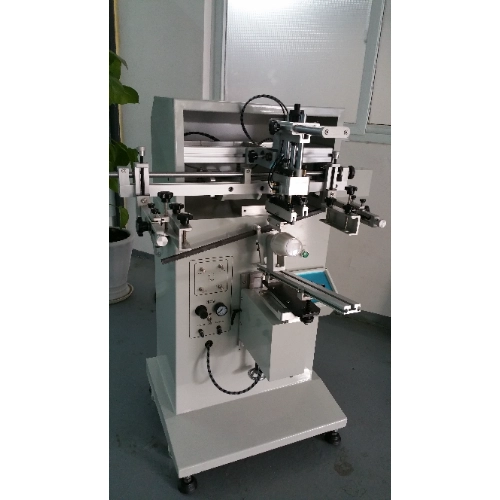

Small Curved Screen Printing Machine LWS-55R
This Compact, High-Belt, Curved Screen Printer Is Ideal For Printing Small Cylindrical Items Such As Cosmetic Bottles, Small Hardware, And Stationery. It Offers High Printing Precision, Accurate Positioning, And Fast Speeds. It Can Also Print On Circular Workpieces Up To 110mm In Diameter; Workpieces Can Be Made Of Plastic, Steel, Ceramic, Glass, And More.
- Rated Power: 50w
- Air Pressure Requirement: 4-6 Bar
- Machine Dimensions: 880mm X 820mm X 1300mm
- Machine Weight: 115 Kg
CONTACT US
DOWNLOAD
Share:
Description
-
Microcomputer Control For All Functions With A High Level Of Automation, Simple And Convenient To Operate.
-
Built-In Four-Digit Automatic Counter.
-
Adjustable Printing Stroke And Speed To Meet Various Printing Requirements.
-
Worktable Allows Fine Adjustment In Up-Down, Left-Right, And Angular Directions For Quick And Easy Calibration.
-
Pneumatic Squeegee Control With Adjustable Pressure System.
-
Stable And Reliable Performance With A Bright, Clear Blue Display Showing Machine Operating Status At All Times.
-
High-Quality Autonics Sensors And An Advanced Fault Alarm System.
-
Convenient Foot Switch For Easy Operation And Maintenance.
-
Lightweight Yet Sturdy Die-Cast Alloy Components With Durable Imported Bearings And Bushings.
-
Pneumatic Components From World-Renowned Brands Such As Smc And Festo.
-
Independent Control Of Printing And Ink-Return Speed Via Microcomputer Control System.
Specification
| Brand | Dabaowen |
| Product Name | Small Curved Screen Printing Machine LWS-55R |
| Maximum print diameter | ≤55mm |
| Maximum printing area | 190*200mm |
| Maximum screen frame size | 480*240mm |
| Maximum print length | ≤200mm |
| Maximum printing speed | 1800 pcs/hour |
| Power requirement | AC220V 50/60Hz |
